Dump My Bay Full Lowering Kit – Bay Window Bus ’68-’79

Dump my Bay Full Lowering Kit Bay Window ’68-’79   $1146.60 – $1611.60

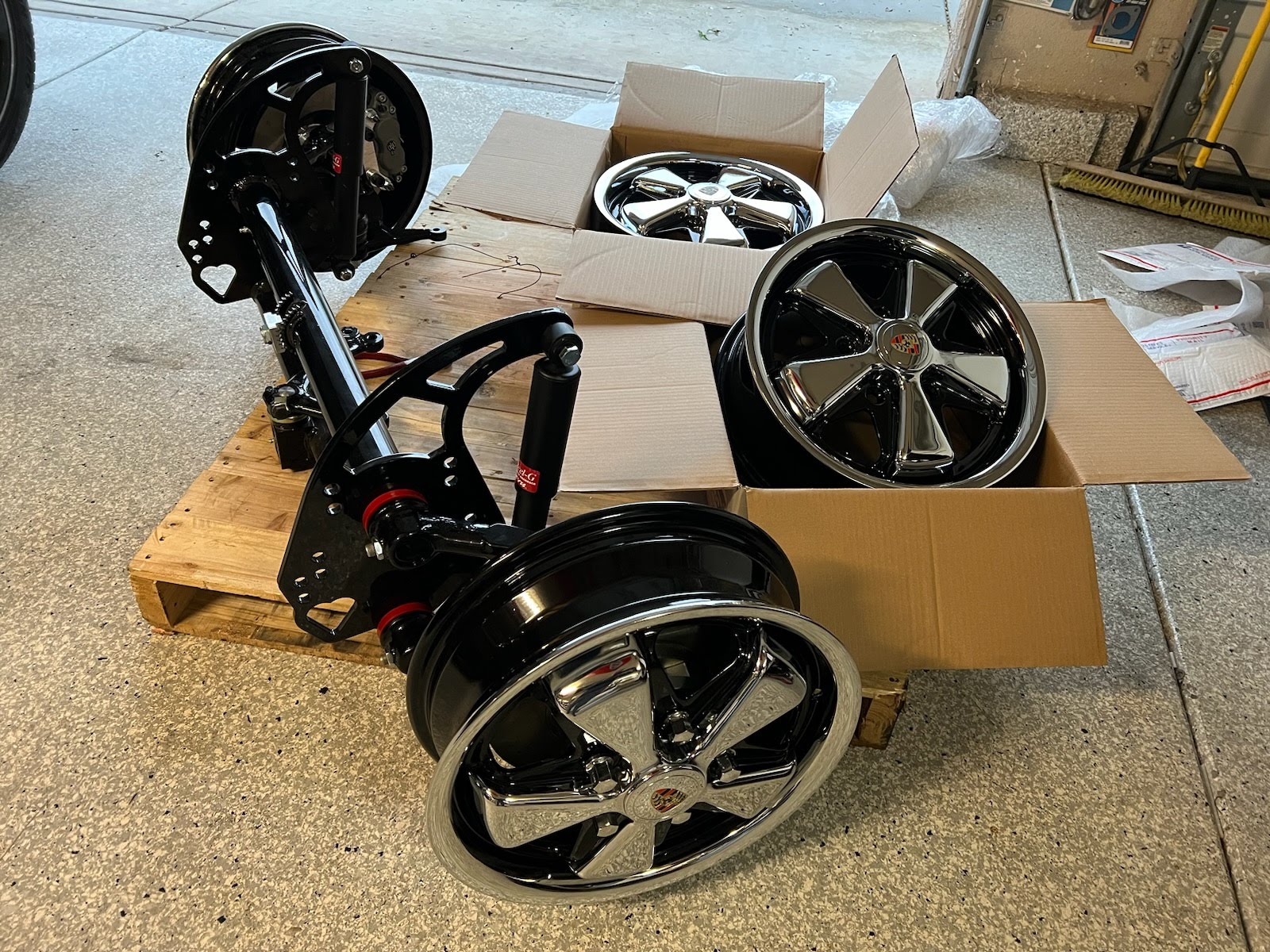

This is Vintage V-Dubs “all-in-one” lowering kit for ’68-’79 Bay Window Buses. Each piece in this package is skillfully engineered and hand fabricated to be the highest quality product kit on the market!!

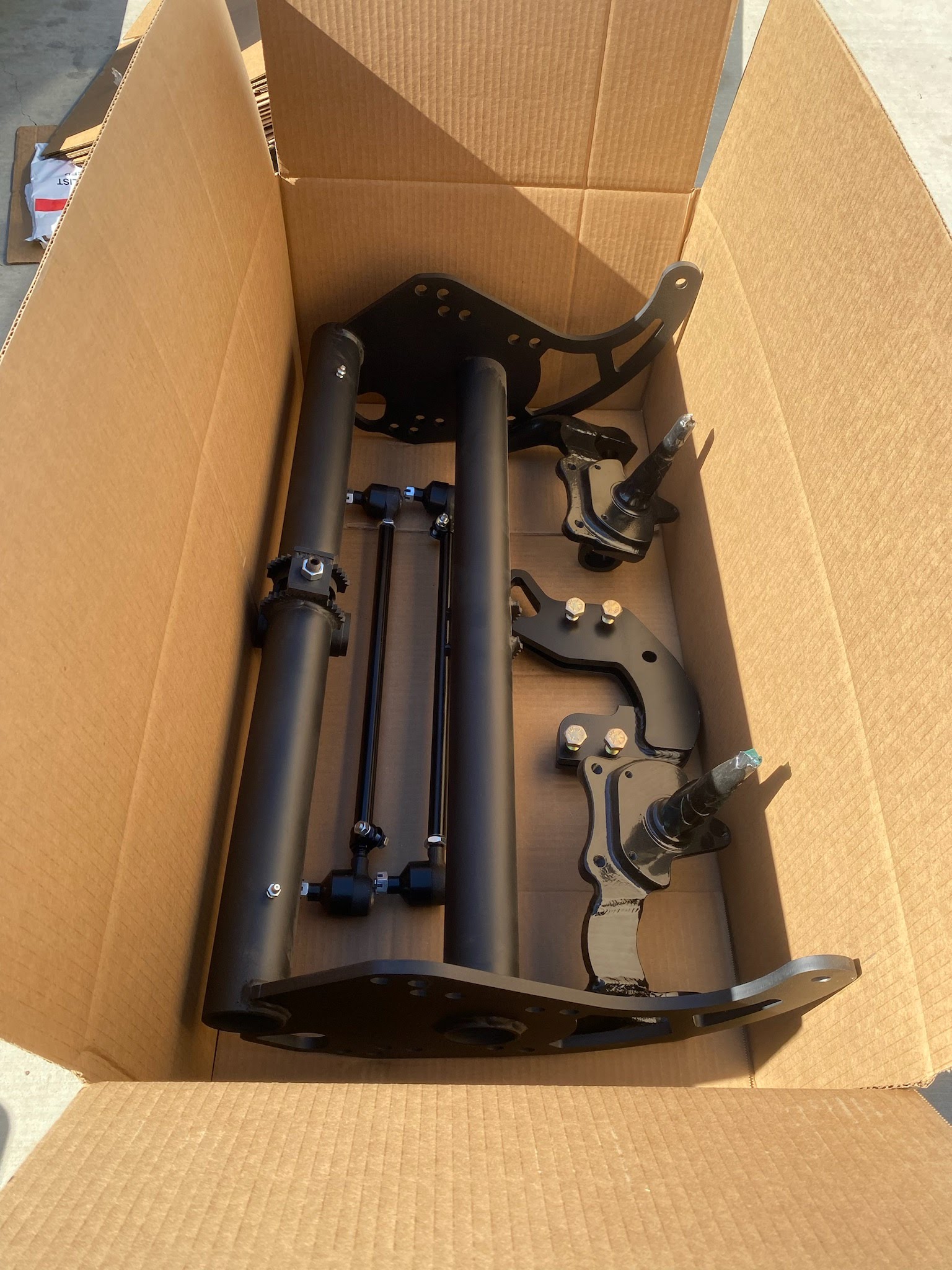

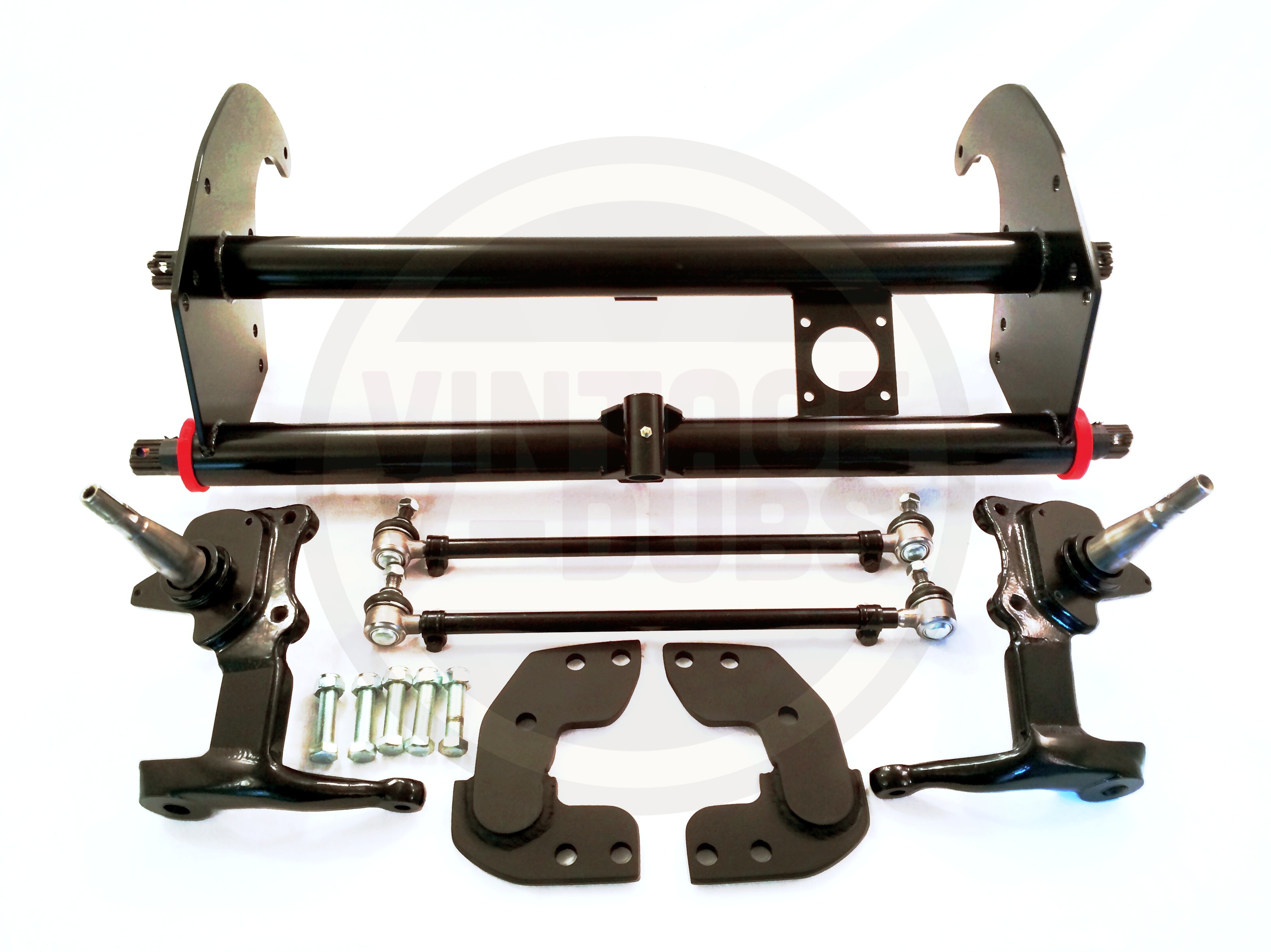

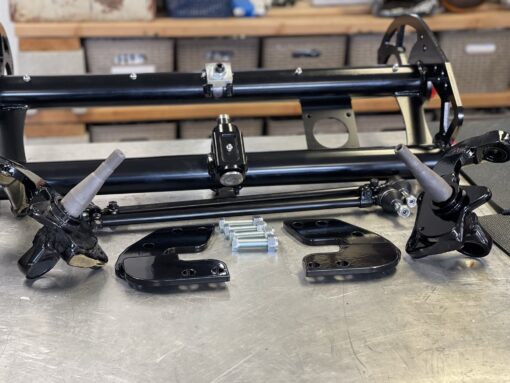

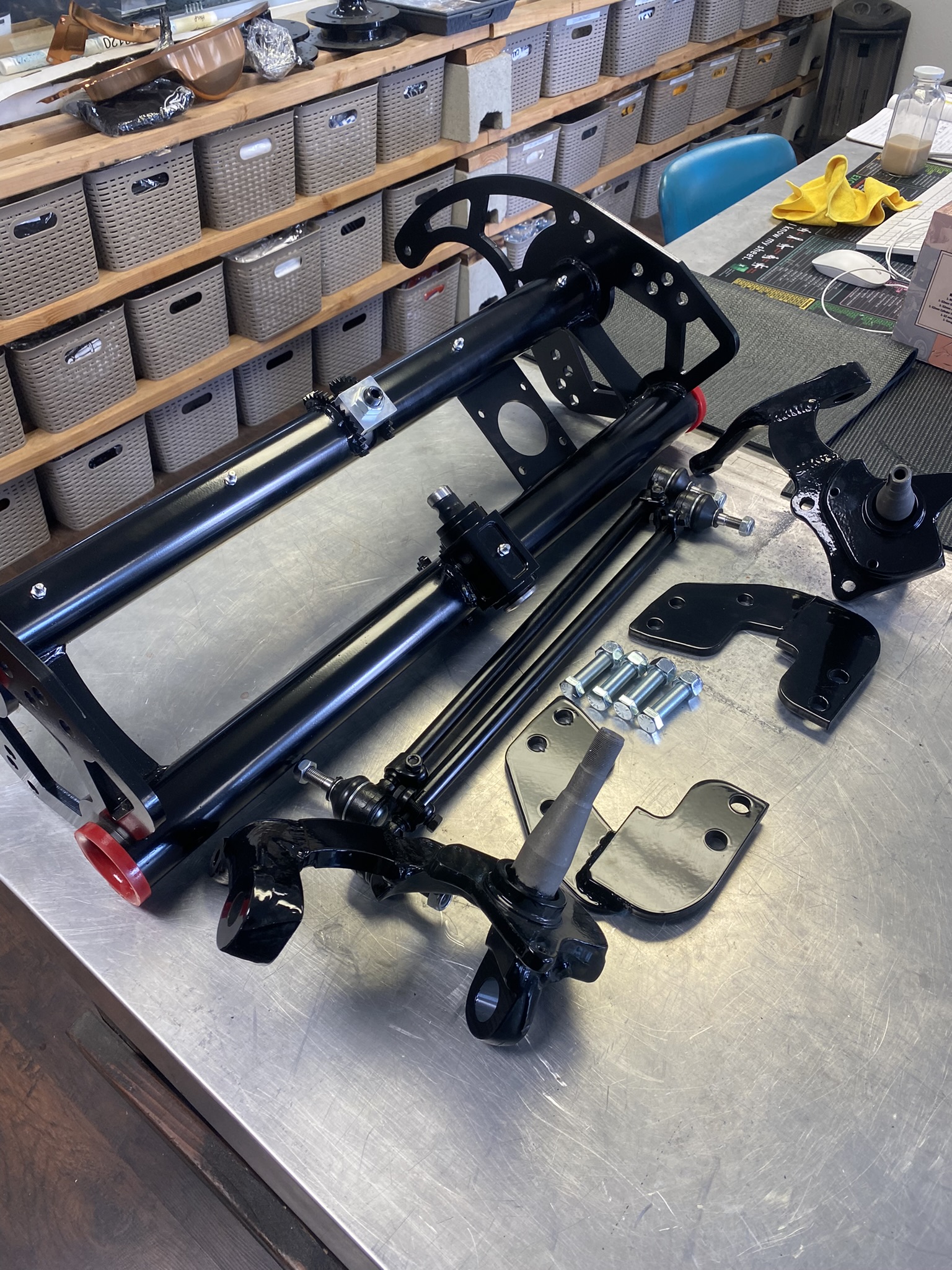

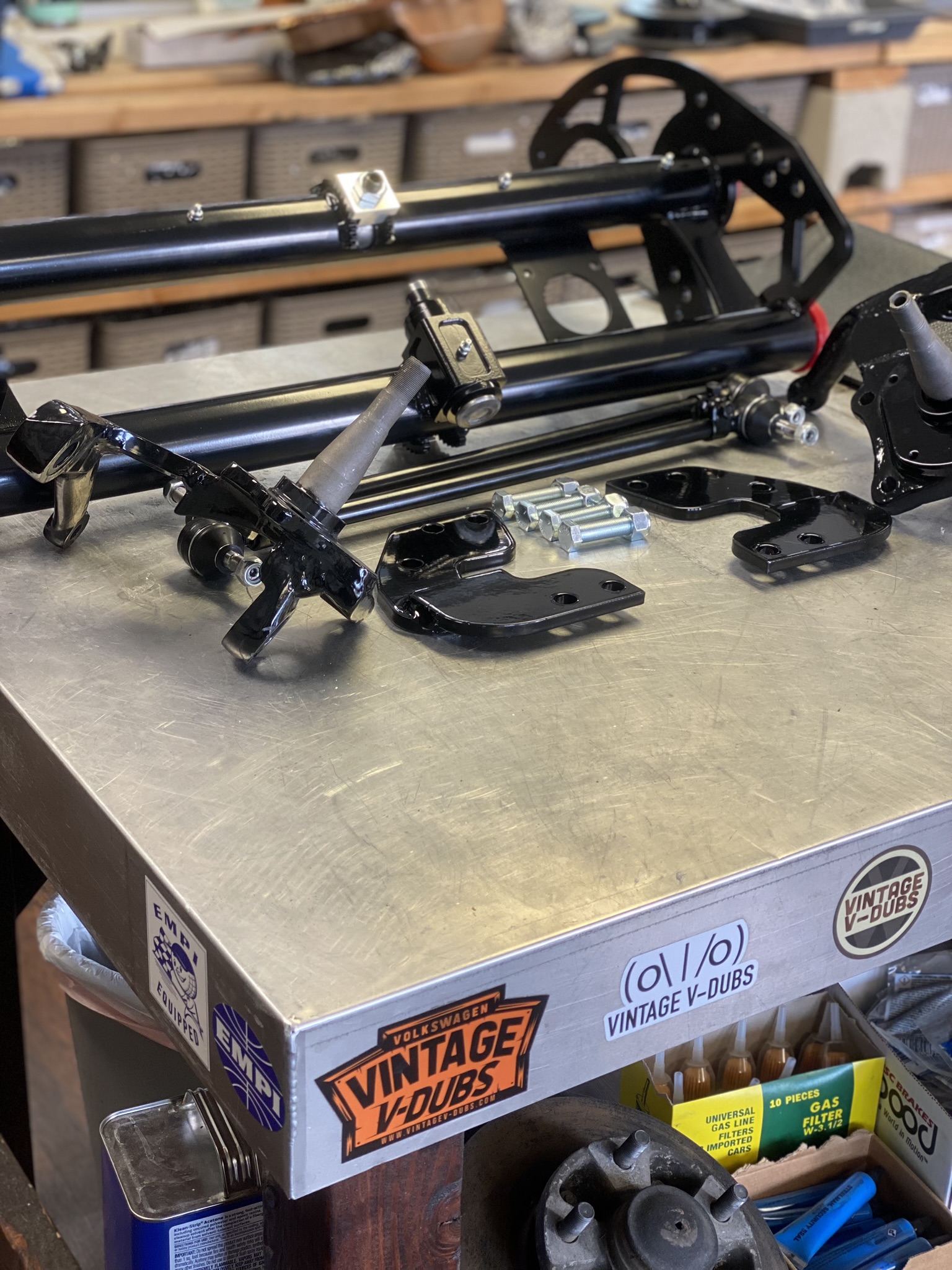

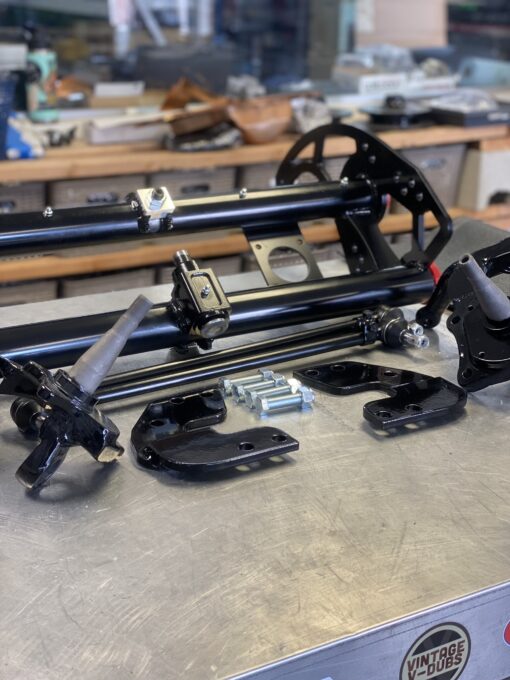

Made here in Southern California, this complete set-up comes with:

-Narrowed Beam – 2″, 4″, or 5″
-2.5″ Dropped Spindles
-Shortened Tie Rods and Ends
-Horse Shoe Plates
-Hardware

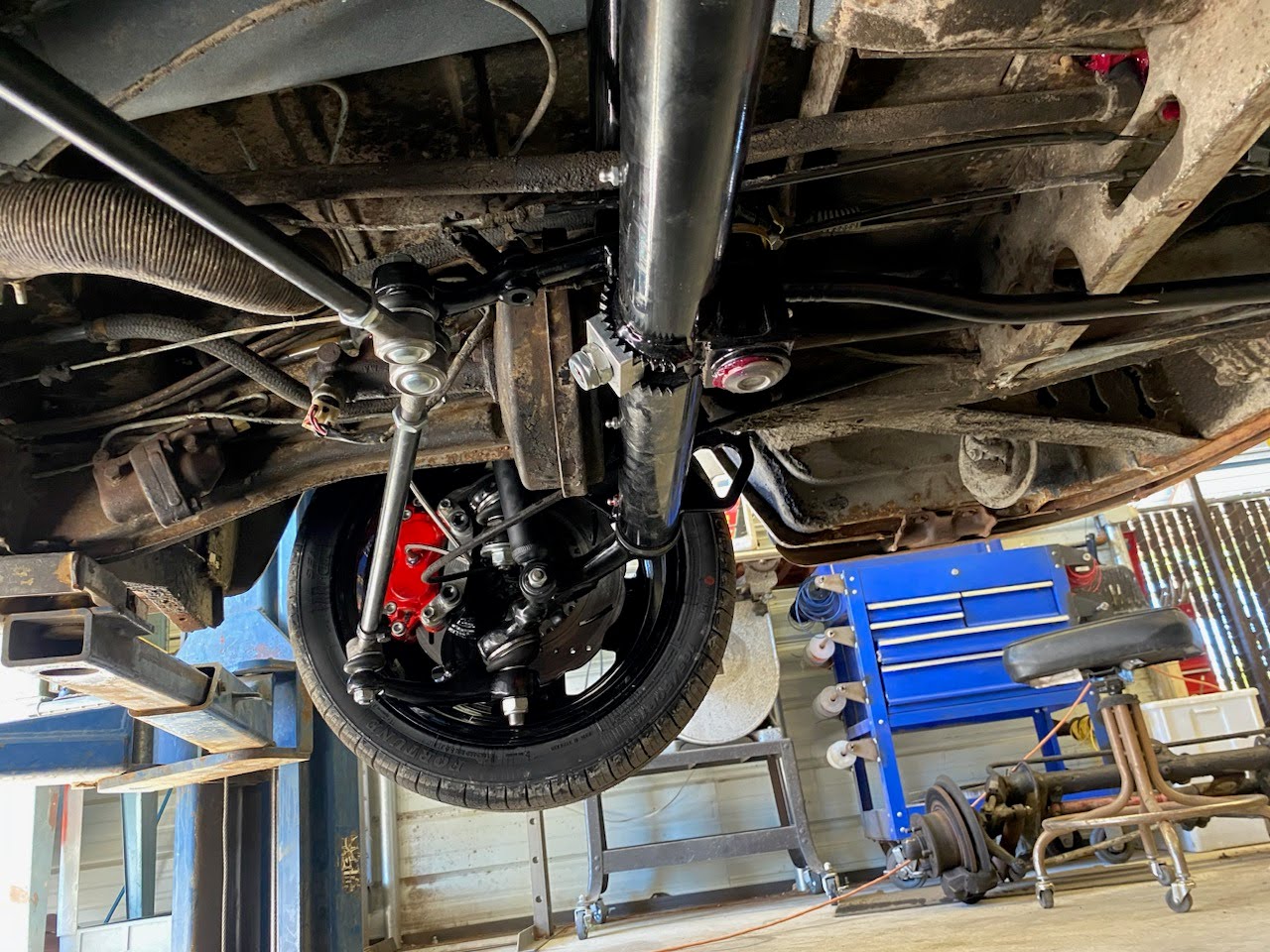

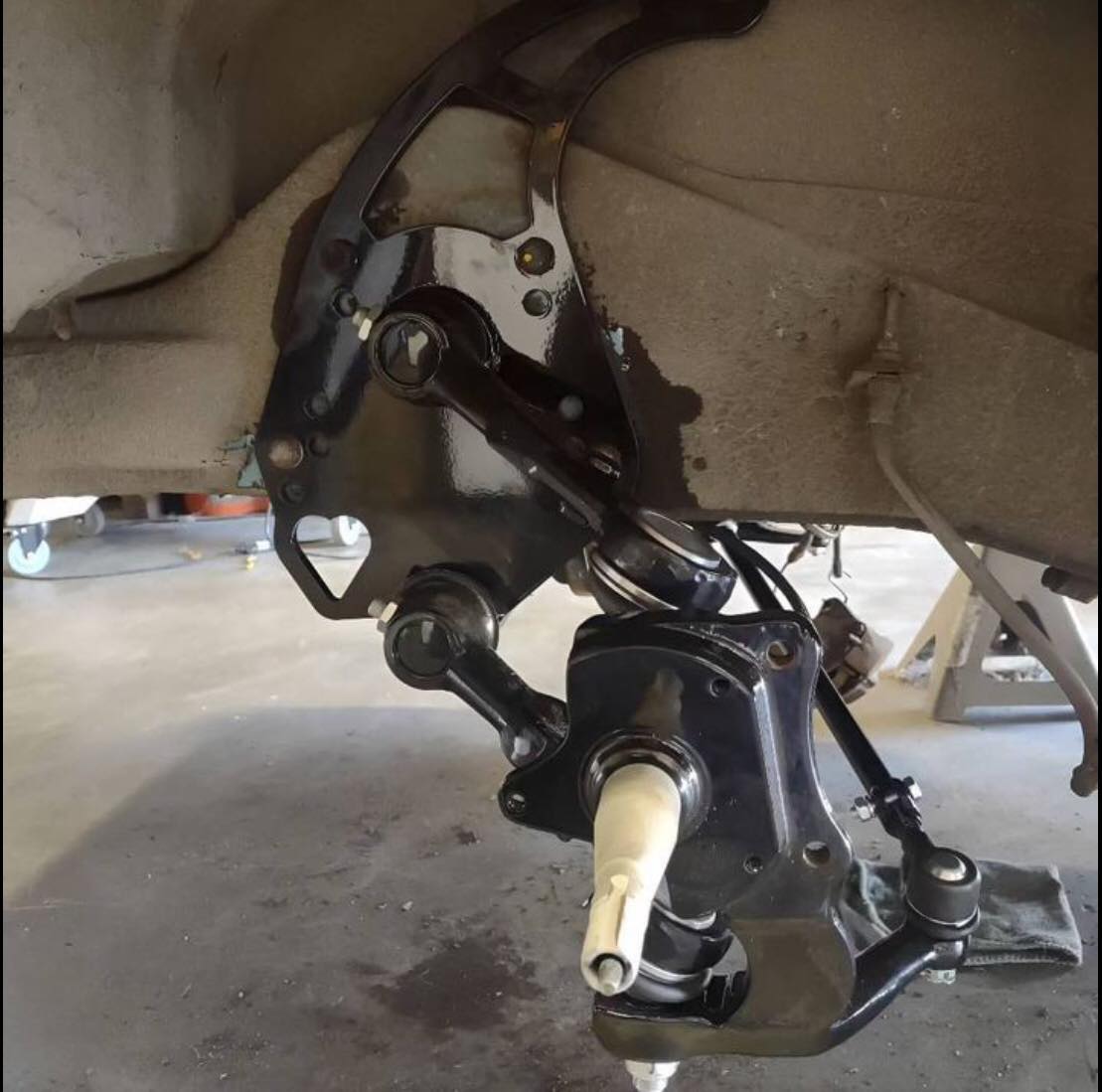

The narrowed beam is fully adjustable and comes professionally tig welded, to fit all ’68-’79 original & aftermarket bay window front suspensions. It includes water jetted side plates, high grade polyurethane bushings, shortened leaves, new center pin, and reconditioned hardware. All beams come with a 2″, 4″, or a 5″ standard narrowed preference, center pin raised pitch of 7/8″, and a 2° rake for maximum and safe ground clearance.

Spindles are also tig welded and fabricated at a 10mm/(1cm) offset with a 2.5″/(6.35cm) drop for maximum strength and durability.

Our custom tie rods and tie rod ends come professionally machined and threaded at the highest quality.

The standard horse shoe plates drop the rear end 3.25″, allowing the max lowering capacity without having to notch or cut your bus’s frame rails.

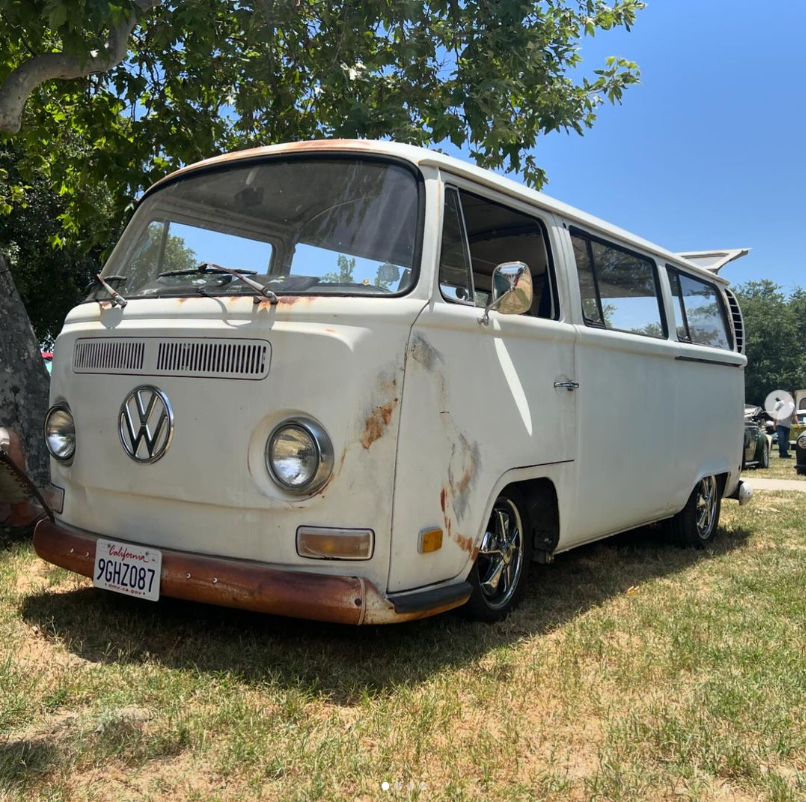

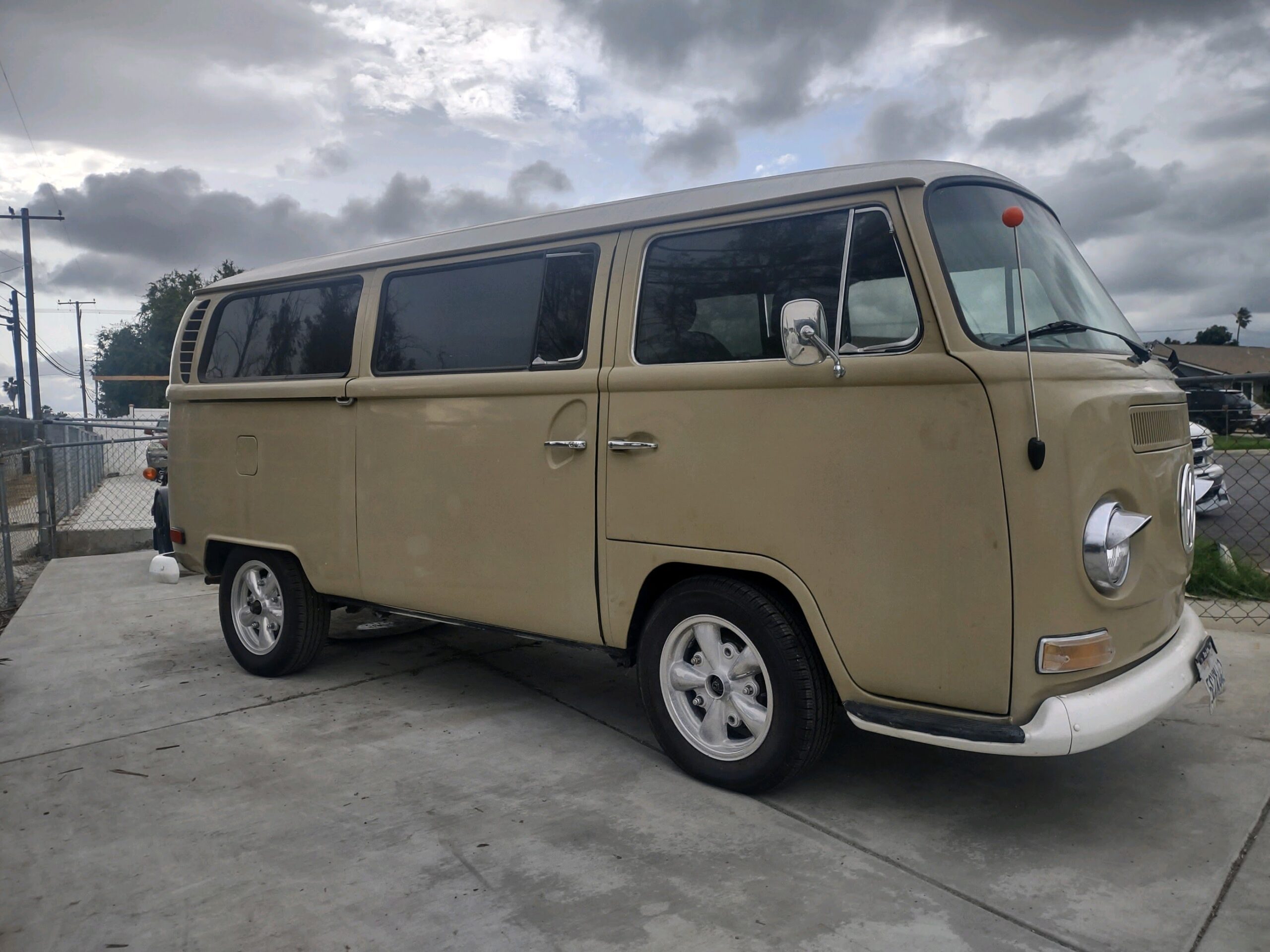

With no other comparable competitive imitations, this set-up will be guaranteed to out live the life of your bus with the option to purchase the kit pieces as raw steel or with a double layered powder-coating. Our bolt-on design allows all bay window owners to install quickly and effortlessly for a comfortable and smooth ride. ’68-’70 Bay Window owners will have a slightly different looking kit package from the photos provided.

Don’t let anyone tell you differently about us or our products, as we respect and support all local, national, and international competitors. If you have any concerns or questions, I highly recommend you call and speak with one of us at the shop!

Prices:
$1092.00 for raw steel & $1253.00 for double semi-gloss powder coating. Kit comes unassembled but has been test fitted and assembled before shipping.

Please add an additional $115.00 if you need us to provide shortened leaf springs.

Please add an additional $150.00 fee to your purchase order if you would like to purchase Stock Spindle Cores

-Will not ship until Cores are received.

Also, please let us know if you intend to run with stock wheels.

Metal Finish Options *

Leaf Shortening *

Leaf Cores *

Year *

Spindle Cores *

Spindle Finish Options *

Narrowed Options

Horse Shoe Plates *

Horse Shoe Plates Finish Options *

Additional Information

Weight 150 lbs
Dimensions 60 x 26 x 26 in
Year:

’68-’70, ’71-’72, ’73-’79

Spindle Cores:

Yes, I will be sending back my Spindle cores!, No, I would like to buy a pair/set of Vintage V-Dubs Spindles outright! (Additional $150.00)
