Ultimate Slam Running Gear Kit – Split Bus ’56-’67


Ultimate Slam Running Gear Kit – Split Bus ’56-’67

You’re looking at Vintage V-Dubs complete/ultimate signature running gear kit for split windows buses ’56-’67 . Why settle for anything less than the best…go for the gold and replace the full boat on your split with this kit and save 10%!! Here are the full details on what you’ll be getting.

•Front End:

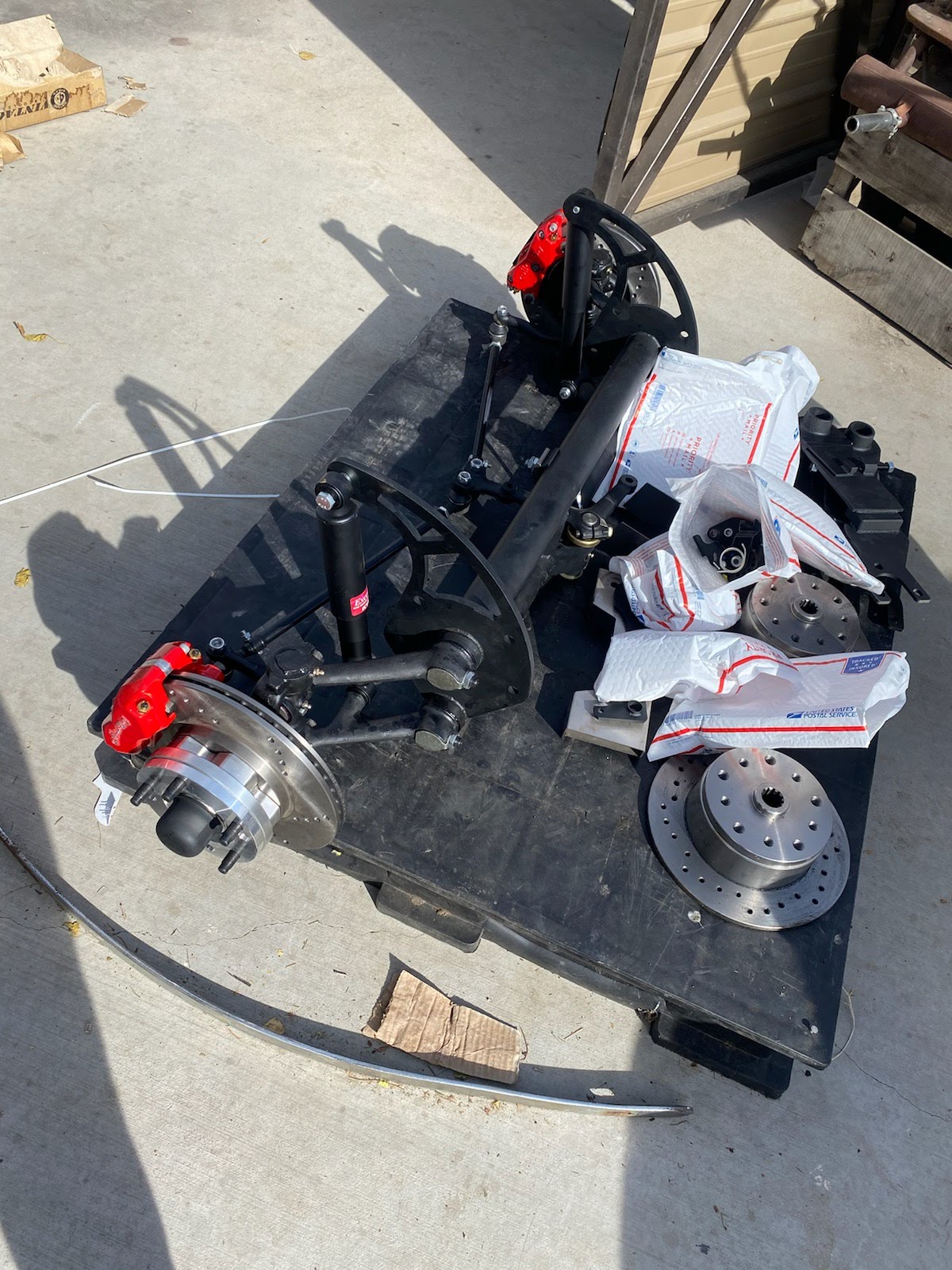

Vintage V-Dubs “all-in-one” “Spindle-to-Spindle”, front end lowering kit for ’56-’67 Split Window Buses. Made here in Southern California, this complete, fully assembled set-up comes with:

-Narrowed Beam – 2″, 4″, or 5″
-2.5″ Dropped Spindles (2)
-Custom Control Arms (4) w/ relocated shock bosses
-New Center Pin Kit & Pitman Arm
-Shortened Tie Rods and Ends (2)
-Shortened and Tapped Leaf Springs
-Oil Shocks (2)

All fabricated parts are professionally welded in custom jigs. The narrowed beam is fully adjustable and includes our water jetted side plates, high grade polyurethane bushings or(Optional Needle Bearings), shortened leaves, new center pin, and hardware. All beams come with a 2″, 4″, or a 5″ standard narrowed preference  and a 2° rake for maximum and safe ground clearance.

•Rear End:
Vintage V-Dubs “Freeway Flyer Swing Axle Transmission” and “Straight Axle Kit.”
& Vintage V-Dubs “Thing Drum Brake Conversion Kit” (Increases Wheel Track for optimal performance w/ Freeway Flyer)

The Vintage V-Dubs Freeway Flyer comes standard with a 4.12 ring and pinion allowing for high speed cruising while keeping RPM’s low, reducing strain on your engine. Rebuilt from only the highest quality OEM & aftermarket components including: new synchro’s, nose cone bushings, bearings, gaskets, seals, and gear carrier bushings. All gears/parts are inspected, checked, and cleaned before reassembly including the sand blasting and painting of the exterior core. This set-up also comes with a full 3-year unlimited mileage warranty to keep your mind at ease.
This complete set-up comes complete with:

-Fully Rebuilt Freeway Flyer Transmission (Details Described Above)
-Axle Tubes (2)
-Step Spring Plates (2) Pre-Dropped 3.5″ and are fully adjustable to go lower
-Axles (2) (Usually not included with other competitors’ kits)
-Wheel Bearings (2)
-Axle Boots & Hardware (2)
-Bearing Caps (2)
-Axle Nuts (2) (Not Pictured)

This Drum Brake Kit includes:
– (2) OE reconditioned backing plates
– (2) new German rear Thing brake drums
– (2) new rear wheel cylinders
– brake shoe set
– mounting hardware included

Don’t see exactly what you want in this Kit? Looking to upgrade to disk brakes in the front or rear of your bus? Want to upgrade your Freeway flyer with a 3.88 x .89 4th gear or pro-street ($250.00) ? Give us a call at the shop and we’ll give you our recommendations.

Please call to make final purchase! Will not ship until Cores are received.

If you need to purchase disc brake kit, please click this link. https://www.vintagev-dubs.com/shop/elite-disc-brake-kit-split-bus-56-67-fits-wide-5-porsche/

UPC 639114088101
